3 holes serrated 5mm, 6mm, 8mm round hole punching machine

3 holes of serrated 5mm, 6mm, 8mm round hole punching machine
* Hole Dimension: 60*20mm                                                                                                                                         * Product dimensions and hole quantities and hole shape can be customized
* Power Source: Pneumatic
* ODM & OEM ( custom design and your logo is available )
* The rate is as high as 150-180 times / min                                                                                                                           * Structure: Cylinder, Gas Inlet Port, Stroke Control Nut, Punch Die, Add Oil Position, Male Punch Die, Passing Film Slot, Female Punch Die Base, Holddown Screw Groove, Holddown Screw Hole.
* Processing By Newest CNC Machining Center.
* Swiss Archie Summer Mill Line Cutting Machine.
* Punch Die Can Be Replaced.
* Meterials: Import Steel, High Quality Aluminum Alloy.
* Thrust Single-Layer Material Thickness 0.02mm-1mm Plastic Bags.
* Application Range: Suitable For PE, PO, OPP, PVC, PPE, CPE And Other Plastic Bags Breather Hole, Hole Stationery Bags Of Food Bag Hook And Etc.
* Application Field: Agricultural Firm, Food Packaging Bag, Paper Bag, Non-Woven Bag, Pharmaceutical Packaging Bag, All kinds Of Jewelry Packaging Bag, Blister Card, Paper Card And Etc.

Download instructions

Products Details

Our advantage:

1. Professional hole punch manufacturer with 10 years of experience.

2. Pneumatic operating punch, apply for different type of plastic bag making machine

3.Apply to punching of Food packaging bag, pharmaceutical packaging bag, all kinds of jewelry packaging bag, non-woven bag, paper bags,etc.

4. The punch die can be replace when it is worn.

5. Import steel, high quality aluminum, processing by newest CNC machining center and

Swiss Archie Summer Mill Line Cutting Machine. In sure the high quality and precision

6. Custom design and Logo is available.

Details of products:

Die base material  High quality die aluminum alloy
Punch die material  High quality die steel imported from Japan
Cylinder  Zhi Cheng Cylinder
Precision ±0.001mm
Length of passing slot  Any size  you need
Power Source Pneumatic
Punching speed  180/minute to 280/minute
Life time  up to 18,000,000to 20,000,000 times
Thickness of your material  Minimum to 0.01mm
Hole size Any size you need
MOQ 1set

Delivery



DHL, FEDEX,etc





Main products:

 Plastic bag punching machine,    Pneumatic punching machine  , Non-woven punching machine    ,Bag making machine punching machine   ,Film punching machine   ,  Washing powder bag punching machine     ,Rice bag punching machine



1.Round hole:   1-80 - mm diameter Round hole punching machine, suitable for PE, PO, OPP, PVC, PPE, CPE and other plastic bags breather hole, hole stationery bags of food bag hook, etc., can be thrust single-layer material thickness 0.02 mm-1mm plastic bags, the rate is as high as 250 times/min punching machine factory.

2. Butterfly hole punching machine, the plane hole punching machine: suitable for PE, Po, PP, OPP, PVC, PPE, PPU, CPE and other plastic bags card head, breathable, pearl film, peg holes, elevator products, such as punching, thrust single-layer material thickness 0.02 mm plastic bags, the rate is as high as 150 times/min

3. Handle hole punching machine : is suitable for the mall shopping bags, rice bags, washing powder bag and all kinds of plastic bag, paper bag punching hand function.PE, PP, OPP, PO, PVC, PPE, CPE and other material product can thrust single-layer thickness of 0.02 mm of plastic bags.

4.special-shaped hole:  Also can according to customer requirements,  the mold production of various special-shaped holemultimode hole, etc (such as: photo album bag of form a complete set of R Angle, triangle, triangle hole punching machine, prismatic, trapezoidal chamfer hole hole punching machine, punching machine cutting Angle die albums opening mold opening hole punching machine, 11 hole pattern, 12 hole pattern, 27 hole pattern and hole pattern 29, 30 hole pattern, 37 hole pattern, 39 hole pattern,     such as porous mold punching machine, applicable to the album bag, bag, white bag, CD inside pages A4 data bags, card bags, medical packaging bags and all kinds of punching holes in paper).Thrust 0.02 MM above all kinds of plastic film, speed up to 120 times per minute



description

Model Number: 5mm 6mm 8mm

    Widely used in packing machine, printing machine, plastic bag machine, pharmaceutical, washing, the injection molding machine, woodworking, and other machinery and equipment.

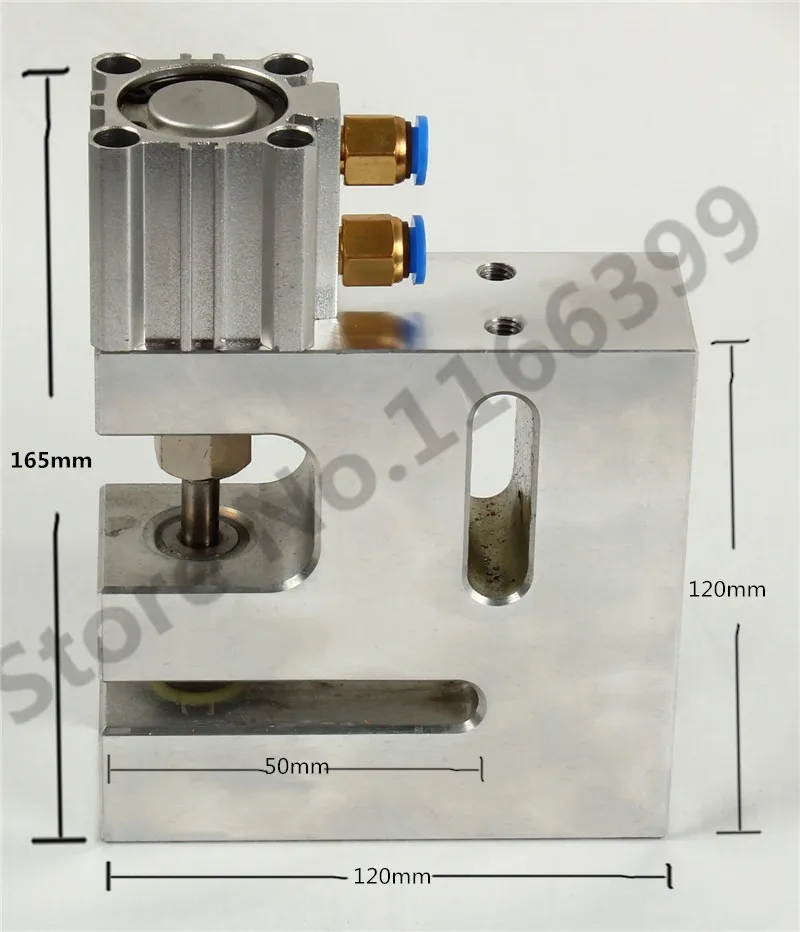

Here is the plan of the rounld hole , Through the material is 50 mm long,you can contact us what shape you want,we can according to your request to design a variety of different pass, and give you the best price.


20

real picture





serrated round punch die dia6mm





serrated round hole punching machine

front side-2

319496130980040284

serrated 6mm
